PCB - Mobile App Integration

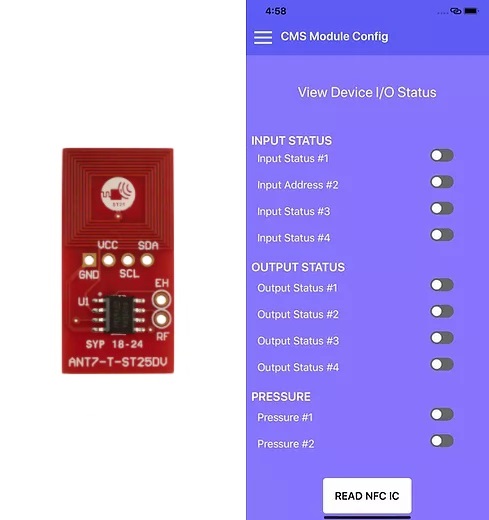

M24LR04E-RDW6T/2 - CMS 4i4O Module Configuration


CMSiOS

Client Location : Denmark
NFC IC : M24LR04E-RDW6T/2 (ST Electronics)
Device : Android NFC Powered Device & iPhone 7 + Device
Tools : Android Studio (Android) & XTools (iOS)
Software : Java (Android) & Swift (iOS)

Functionalities:
1. The M24LR04E-R device is a Dynamic NFC/RFID tag IC with a dual-interface, electrically erasable programmable memory (EEPROM)
2. Read & Write the NFC IC - 4Kbit EEPROM
3. NFC IC is password Protected, so Every write operation is performed only after presenting the valid password.

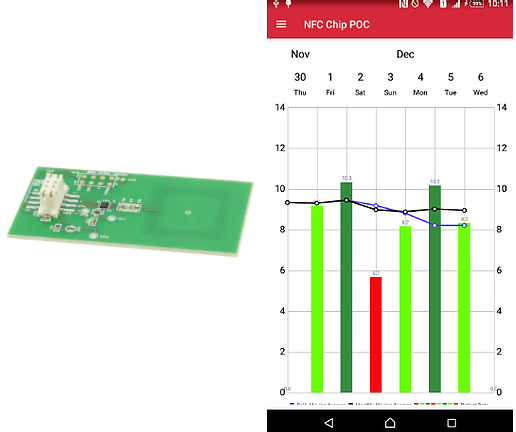

NFC-TAG-MN63Y1213_2020 - NFC IC Read Tool

Client Location : Uster, Switzerland
NFC IC : NFC-TAG-MN63Y1213_2020 (Panasonic Electronic Components)
Device : 6 inch NFC enabled Android Device
Tools : Android Studio 2.1
Software : Java
Web technologies : XML

Functionalities:
1. Read the NFC IC using NFC enabled Android Device.
2. Draw the graph on Daily & Monthly moving average.
3. Draw graph on Daily recorded count.

NFCICReadTool

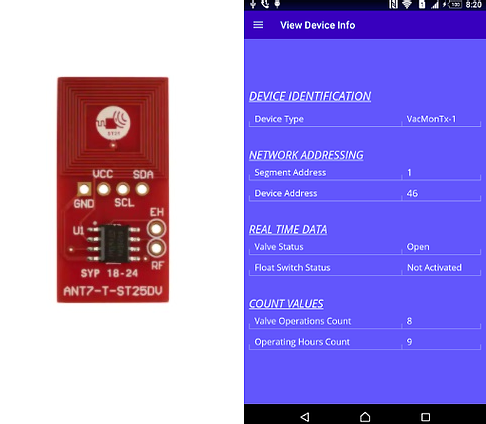

M24LR04E-RDW6T/2 (ST Electronics) - Configurator App

vacmon

Client Location : Denmark
Android Version: Android 6.0 & above
NFC IC : M24LR04E-RDW6T/2 (ST Electronics)
Tools : Android Studio 4.1.2
Software : Java

Functionalities:
1. The M24LR04E-R device is a Dynamic NFC/RFID tag IC with a dual-interface, electrically erasable programmable memory (EEPROM)
2. Read & Write the NFC IC - 4Kbit EEPROM
3. NFC IC is password Protected, so Every write operation is performed only after presenting the valid password.

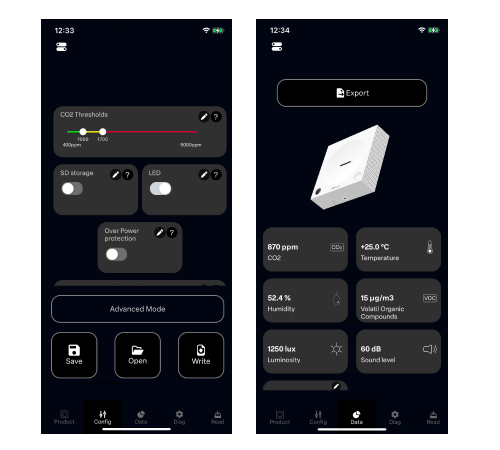

IoT Sensor Android & iOS App

Client Location : France
NFC IC : Dynamic NFC IC
Device : NFC enabled Android Device & iPhone
Software : Java, Swift

The app is used to configure different IoT NFC Sensor which is used for fire safety, environmental monitoring, air quality, and building energy management.


Functionalities:
1. End user can configure the IoT Device NFC Dynamic chip.
2. Mobile app has predefined configurations, which can easily accessed by users
3. Users can export the configuration data
4. Mobile app has Firmware updating feature.
